Trade Flow

Filter consolidated US stock trades by symbol, venue, condition, size, price, and premium.

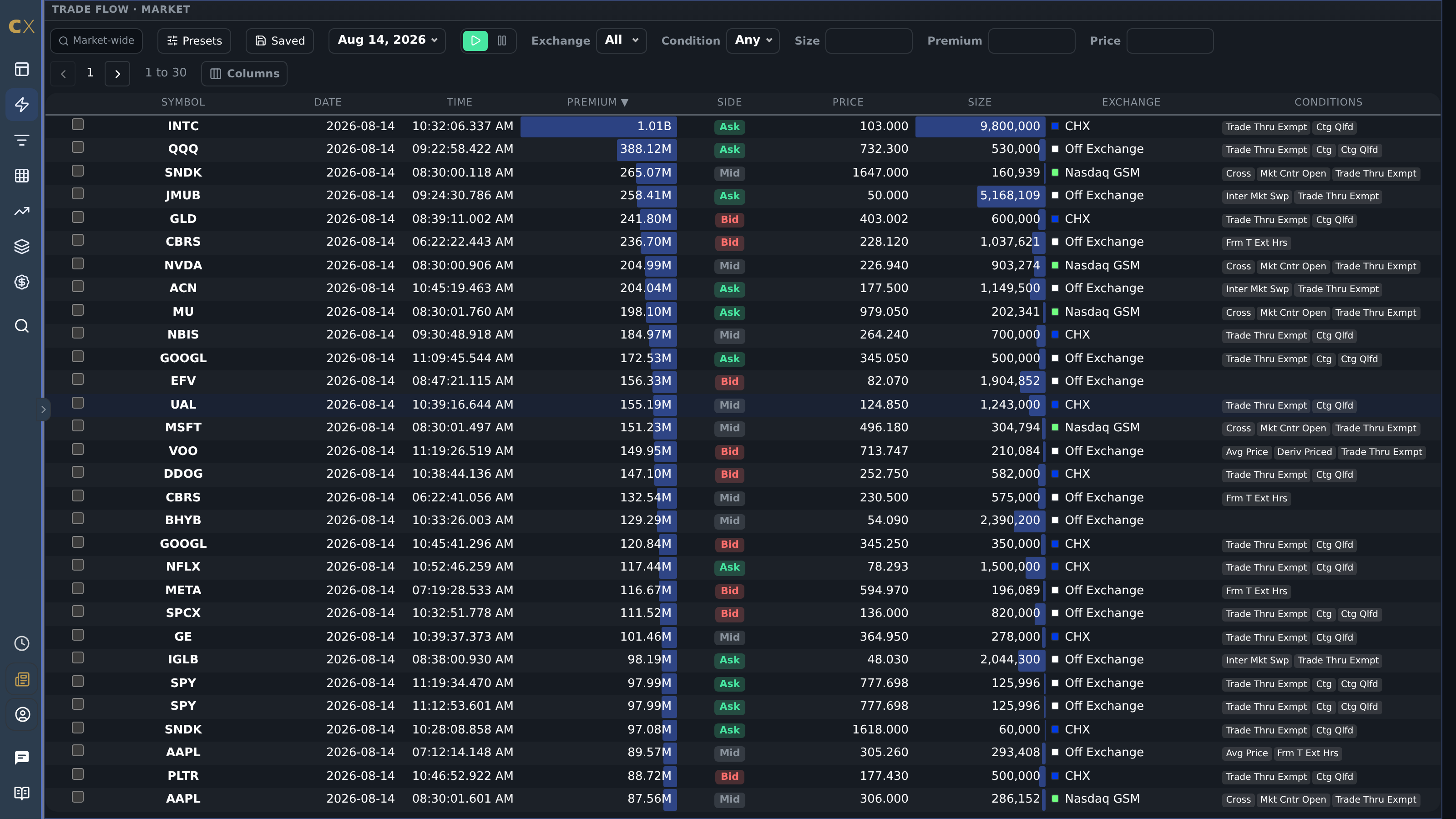

Trade Flow lists consolidated US stock trades across the market or for selected symbols.

Choose symbols and a session

Leave Symbols empty for a market-wide scan, or add one or more tickers for a focused table. Excluded symbols remove tickers from a market-wide scan.

Play follows new trades during the available session. Pause to keep the current rows in place. A selected date loads that session, and symbol-specific tables can use a date range.

Scope, session, venue, condition, and numeric filters are applied above the results.

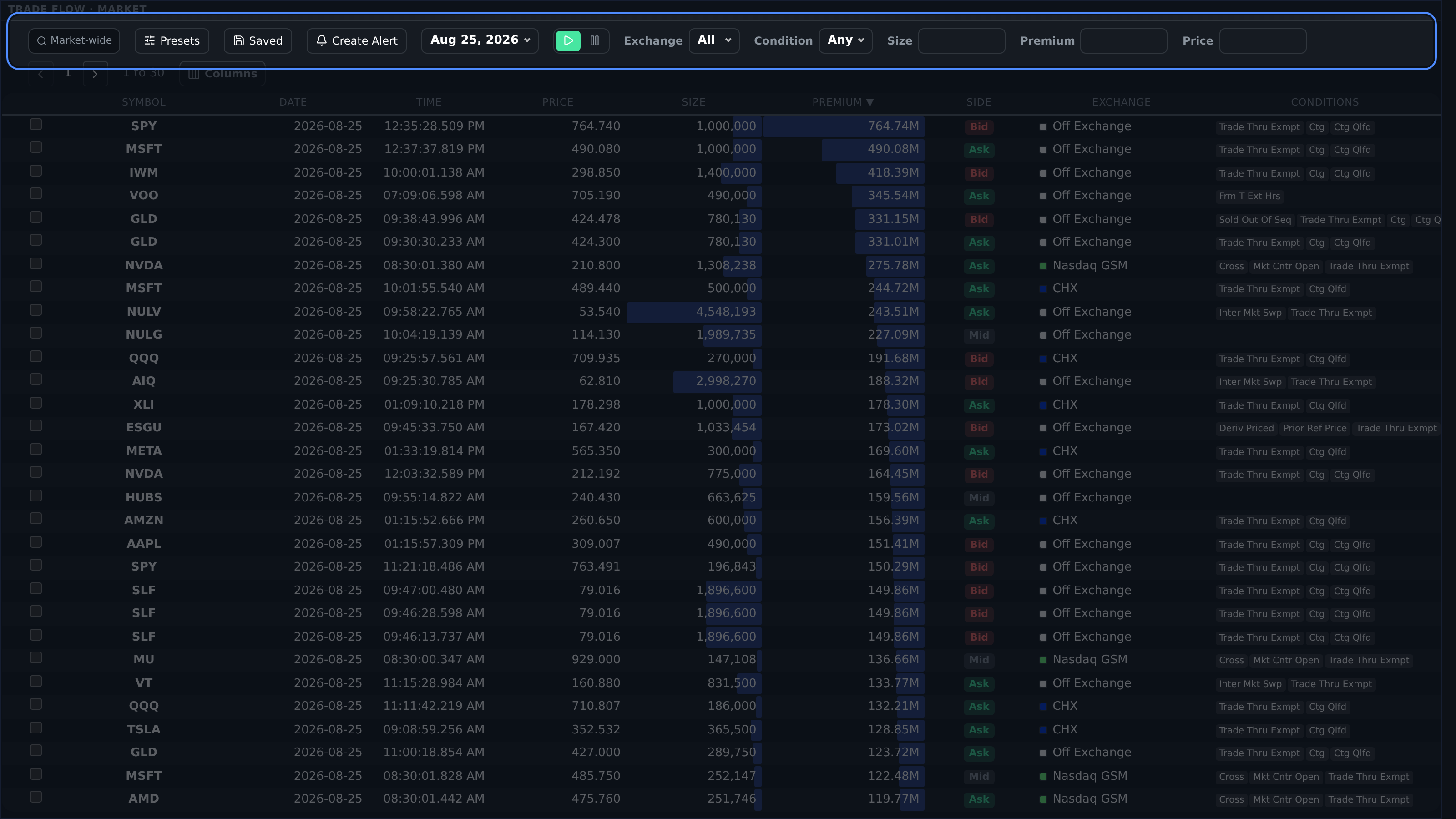

Filter trades

Exchange selects one or more reporting venues. Conditions can include or exclude sale conditions. Size is the number of shares, Price is the reported price per share, and Premium is price multiplied by size.

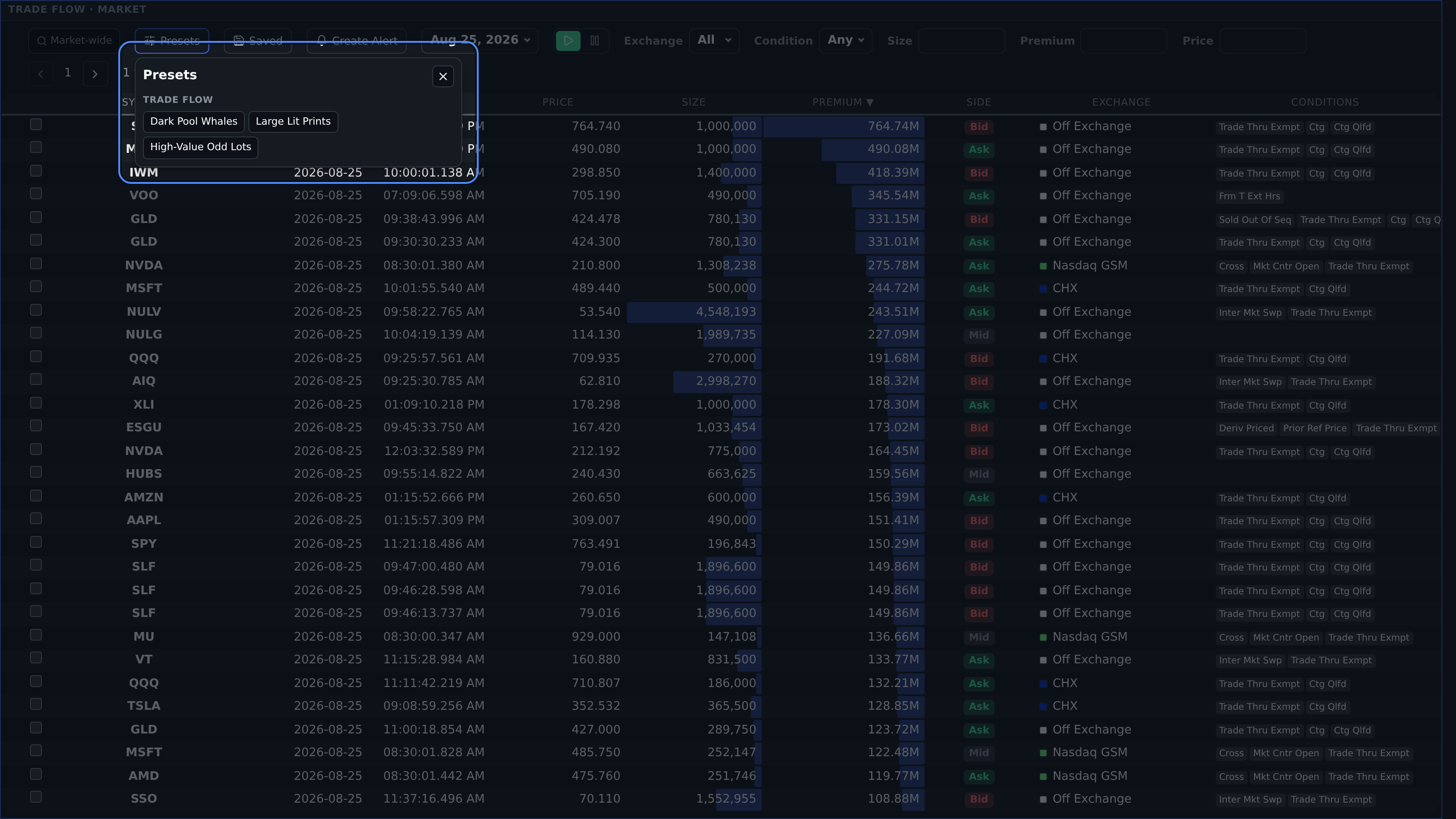

Numeric filters accept equalities and combined ranges such as >=10k <50k. Built-in presets apply several filters and the relevant columns together for dark-pool whales, large lit prints, and high-value odd lots.

A preset applies its filters, columns, and sort together.

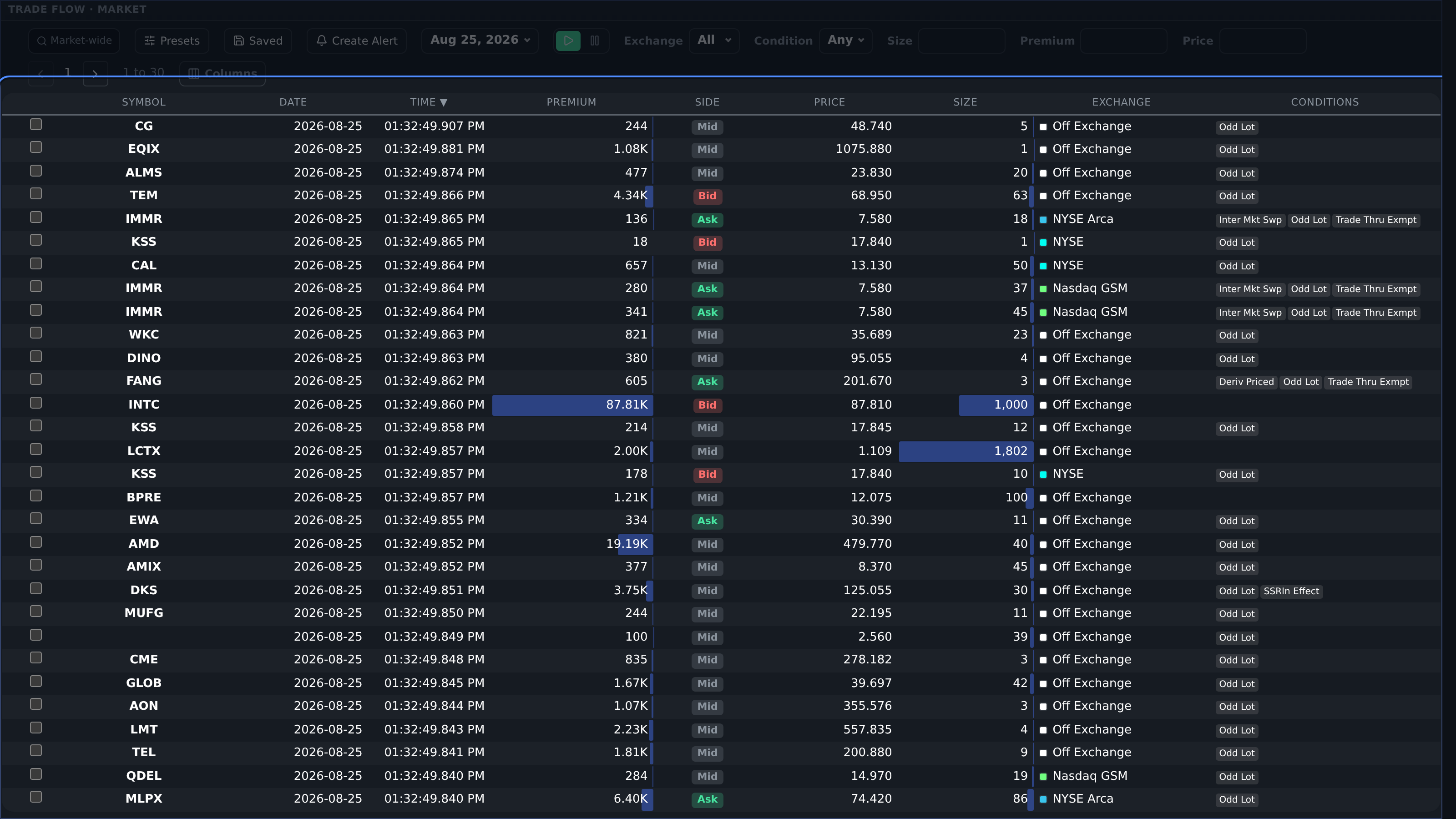

Choose columns and sort

Use Columns to show, hide, search, and reorder Symbol, Date, Time, Price, Size, Premium, Side, Exchange, Conditions, and the chart marker. Sort the table by time, price, size, or premium.

Select one or more trades in a symbol-specific table and use Mark trade on chart to open a chart with those executions marked at their reported times and prices.

Choose Bubbles, Dots, Labels, or Price levels for the selected marks. Labels can stay visible or appear on hover. Price levels extend from the execution toward the right edge. Marks are included when you save or share the chart.

The table keeps its selected columns and sort while paging.

Trade Flow on a chart

Add Trade Flow from the chart Indicators picker to open its window below the chart. Reopen it with Open Trade Flow window at the top of the indicator settings. Filter the table and check trades to plot them. Mark on chart opens the chart with Trade Flow settings and the chosen trades.

Use Selected (n) to view chosen trades in the table. Combine Bubbles, Dots, Labels, and Price levels in Display. The window starts below the chart and can float or dock on any edge.

Available dates and delayed data follow your plan. Bid, Mid, and Ask describe the reported price relative to the quote.

Save filters and create alerts

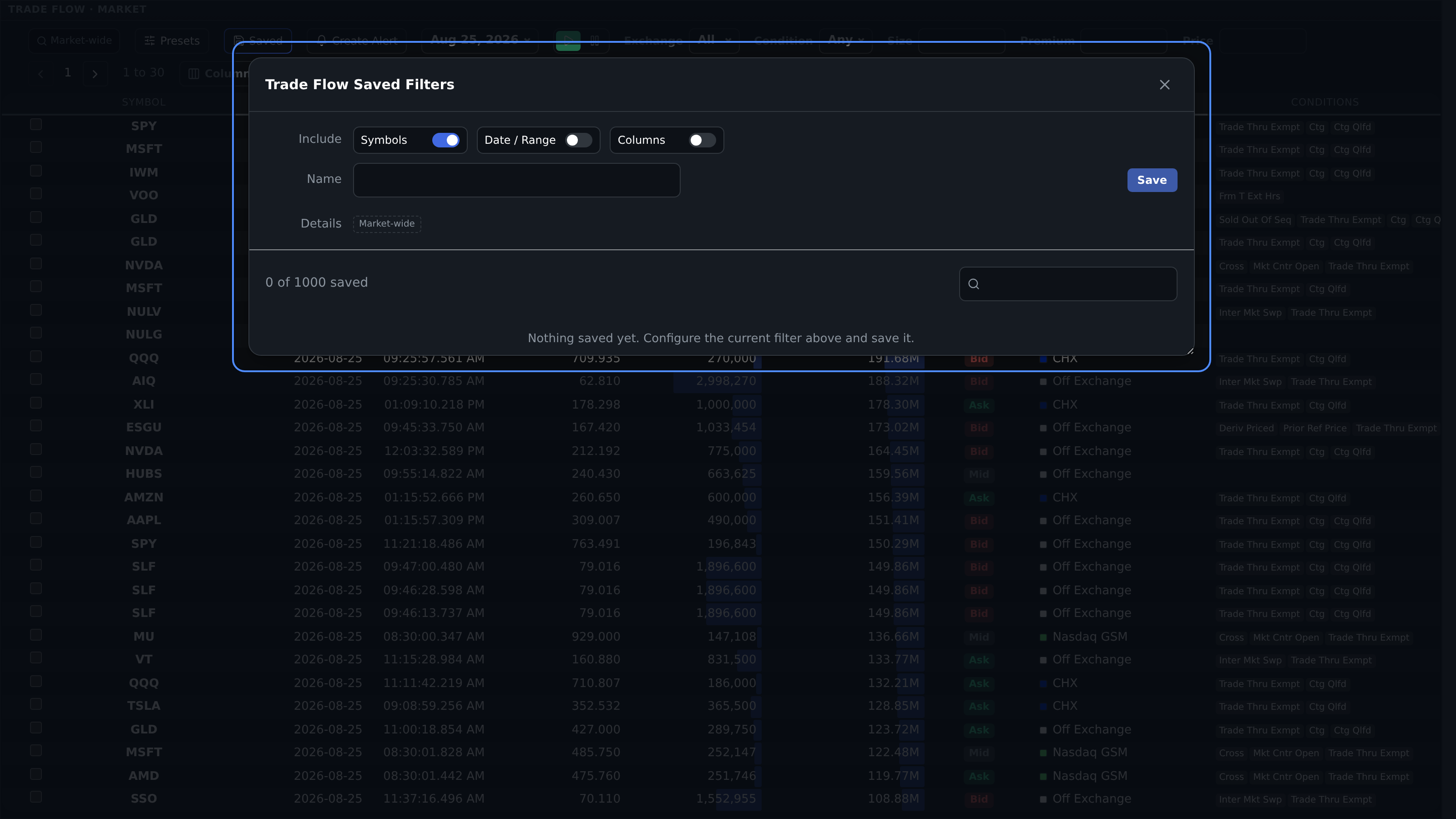

Saved filters store the current filters. Symbols, date or range, and columns can each be included or omitted. Applying a market-wide saved filter from a stock page opens the standalone Trade Flow table.

Create Alert uses the current Trade Flow filters. A Trade Flow alert needs at least one numeric Price, Size, or Premium condition. Manage saved rules and delivered events from Alerts.

Choose whether a saved filter includes symbols, dates, and the current column layout.
